Strength that lasts
Engineered for alignment.
Streamlined for installation.
Secondary structures bring order and confidence to the building as it takes shape. Walls and roofs come together with clarity and consistency, creating momentum as design becomes reality. It allows the building to work harder without feeling constrained.
Precision and coordination across the system reduce uncertainty during installation and reinforce stability over time. Integrated as part of a complete building approach, secondary structures help the entire structure perform as one, delivering long-term strength, efficiency and reliability.
Features
Structural components engineered for alignment, strength and ease of installation.

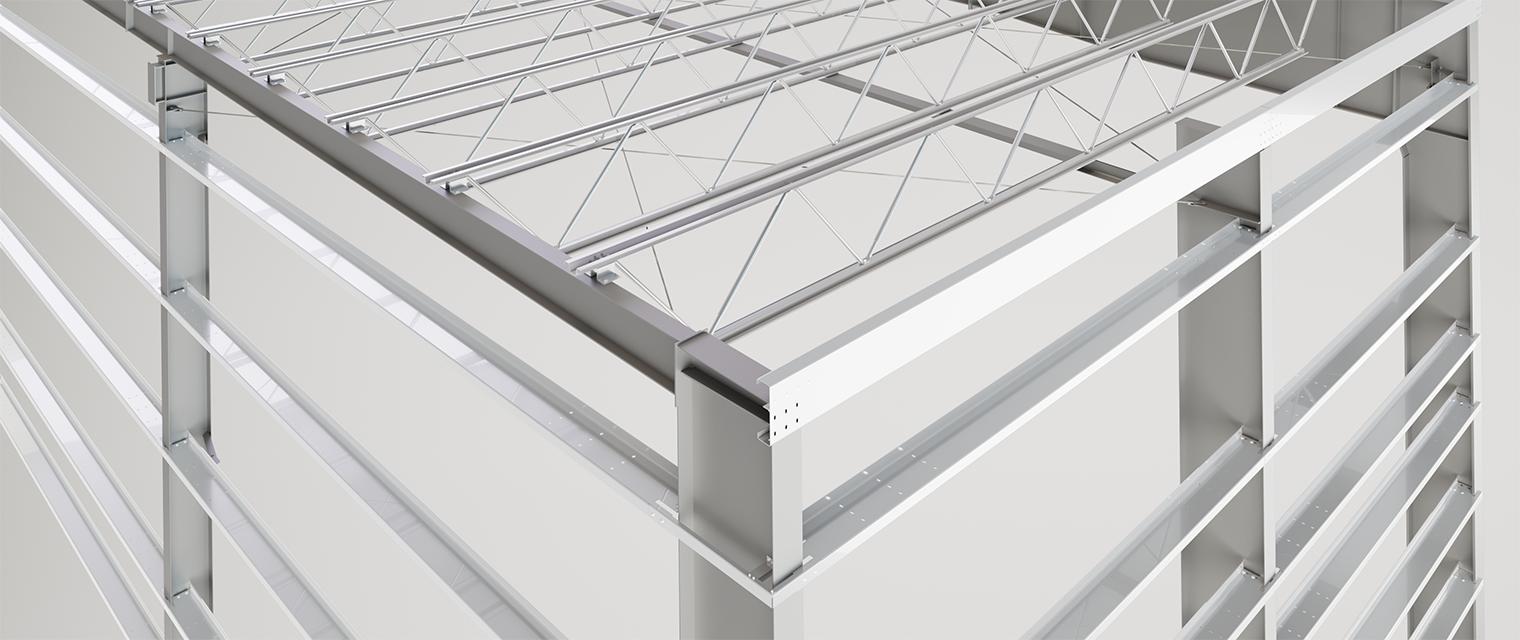

Roll-formed secondary structure members in Cee or Zee-shaped purlins and girts
Top and bottom chords are bolted therefore eliminating the need for welding and creating consistent fabrication
Long-span capability for WideBay ranges from 12–60 feet with depths of 30", 34" and 40" for optimized performance
Designed to align with Varco Pruden roof and wall systems for integrated performance
Product Options
Girts
Varco Pruden Girts deliver reliable alignment and structural reliability for exterior wall systems. Their C-shaped or Z-shaped profiles and optimized spacing create a consistent framework for efficient installation and long-term durability.
- Formed from G30 galvanized steel with clear acrylic coating for material consistency
- Available in 7", 8½", 10" and 11½" depths to suit varied wall conditions
- Nestable geometry offers compact freight and efficient jobsite staging
Purlins
Varco Pruden Purlins deliver assurance for roof systems with C-shaped and Z-shaped profiles that optimize strength and alignment. Consistent geometry strengthens long-term roof performance.
- Formed from G30 galvanized steel with clear acrylic coating for material consistency
- Standard Z- and C-sections includes Z-sections in 7", 8 1/2", 10" and 11 1/2" depths for lapped continuity, with C-sections for end bays
- Nestable geometry offers compact freight and efficient jobsite staging
WideBay™ Trussed Purlins
Engineered for spans up to 60 feet, WideBay Trussed Purlins feature a design that improves erection speed and accuracy. Its lighter weight reduces freight cost and delivers long-term corrosion resistance.
- Available in multiple depths to optimize performance across 12 - 60′ bay spacing
- Reduces erection labor and installed cost compared to traditional bar joist solution
- Galvanized finish eliminates the need for field painting, and improves durability and reflectivity
Transbay™ Bar Joist System
Designed for facilities requiring large, open areas and wide bay spacing, the Transbay Bar Joist System provides a structural solution for supporting long spans.
- Accommodates bay spacing beginning at 40′ and above
- Supports mechanical, electrical and fire protection routing through joist web openings
- Integrates with VP primary framing for coordinated structural performance
- Compatible with SSR and SLR II roof systems used in large-span applications
